Keycloak + OAuth2 Proxy on Kubernetes - Secure your web application - 2024

Introduction Link to heading

In this article, we will use Keycloak and OAuth2 Proxy to secure a web application running on Kubernetes.

first of all please check the pre-required list:

• A Kubernetes cluster
• kubectl
• helm
• A domain name
• A Keycloak instance

To install Keycloak on Kubernetes using Helm, follow these steps:

1. Add the Keycloak Helm repository: First, you need to add the Keycloak Helm repository to your Helm client. Run the following command:

   helm repo add codecentric https://codecentric.github.io/helm-charts


2. Update your Helm repository: To ensure you have the latest version of the Keycloak chart, update your Helm repositories:

   helm repo update


3. Install Keycloak: Now, you can install Keycloak using the Helm chart. You can customize the installation by creating a values.yaml file or by setting values directly on the command line. For a basic setup, run:

   helm install keycloak codecentric/keycloak


   If you need to customize your installation, for example, setting a specific admin username and password, you can do so by adding --set parameters:

   helm install keycloak codecentric/keycloak --set keycloak.username=admin --set keycloak.password=admin123


   For more advanced configurations, it’s recommended to use a values.yaml file:

   helm install keycloak codecentric/keycloak -f values.yaml


4. Access Keycloak: After the installation is complete, Keycloak can be accessed through the Kubernetes service. To get the external IP address or hostname, use:

   kubectl get svc


   Look for the keycloak service, and use the external IP or hostname to access Keycloak’s web interface.

5. Post-installation configuration: Once Keycloak is up and running, you can access its web interface to create realms, clients, and users. Refer to the official Keycloak documentation for detailed instructions on post-installation configuration.

By following these steps, you will have a Keycloak instance running on your Kubernetes cluster, ready to secure your web applications.

To enhance the security of your web applications further, you can install oauth2-proxy using a Helm chart on Kubernetes. This proxy will work alongside Keycloak to authenticate and authorize users accessing your applications. Follow these steps to install oauth2-proxy:

1. Add the oauth2-proxy Helm repository: To get started, add the oauth2-proxy Helm repository to your Helm client with the following command:

   helm repo add oauth2-proxy https://oauth2-proxy.github.io/manifests


2. Update your Helm repository: Ensure you have the latest version of the oauth2-proxy chart by updating your Helm repositories:

   helm repo update


3. Install oauth2-proxy: You can now install oauth2-proxy using the Helm chart. Similar to Keycloak, you can customize the installation by creating a values.yaml file or by setting values directly on the command line. For a basic setup, run:

   helm install oauth2-proxy oauth2-proxy/oauth2-proxy


   To customize your installation, such as setting up the provider, client ID, and client secret, you can use the --set parameters. Here’s an example for setting up oauth2-proxy with Google as the provider:

   helm install oauth2-proxy oauth2-proxy/oauth2-proxy --set config.provider=google --set extraArgs.client-id=YOUR_CLIENT_ID --set extraArgs.client-secret=YOUR_CLIENT_SECRET


   For more detailed configurations, it’s recommended to use a values.yaml file:

   helm install oauth2-proxy oauth2-proxy/oauth2-proxy -f values.yaml


4. Configure DNS and Ingress: After the installation, you’ll need to configure DNS and Ingress to route traffic through oauth2-proxy to your application. This step varies based on your Kubernetes setup and the domain provider you’re using.

By following these steps, you will have oauth2-proxy installed and configured in your Kubernetes cluster, working in tandem with Keycloak to secure your web applications.

To demonstrate the security features provided by Keycloak and oauth2-proxy, we will deploy a simple web application called http-echo on Kubernetes. This application will echo back any request made to it, making it a perfect candidate for our demonstration. Follow these steps to install http-echo:

1. Create a Deployment for http-echo: First, we need to create a Kubernetes Deployment that runs http-echo. Save the following YAML to a file named http-echo-deployment.yaml:

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: http-echo
     labels:
       app: http-echo
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: http-echo
     template:
       metadata:
         labels:
           app: http-echo
       spec:
         containers:
         - name: http-echo
           image: hashicorp/http-echo
           args:
             - "-text=Hello from http-echo"
           ports:
           - containerPort: 5678


   Deploy it to your Kubernetes cluster with the command:

   kubectl apply -f http-echo-deployment.yaml


2. Expose http-echo using a Service: Next, we need to expose the http-echo Deployment using a Kubernetes Service. Save the following YAML to a file named http-echo-service.yaml:

   apiVersion: v1
   kind: Service
   metadata:
     name: http-echo
   spec:
     selector:
       app: http-echo
     ports:
       - protocol: TCP
         port: 80
         targetPort: 5678


   Apply it with the command:

   kubectl apply -f http-echo-service.yaml


3. Create an Ingress to access http-echo: Finally, to make http-echo accessible from outside the Kubernetes cluster, we need to create an Ingress. Note that you should have an Ingress controller running in your cluster. Save the following YAML to a file named http-echo-ingress.yaml:

   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: http-echo
   spec:
     rules:
     - http:
         paths:
         - path: /echo
           pathType: Prefix
           backend:
             service:
               name: http-echo
               port:
                 number: 80


   Apply it with the command:

   kubectl apply -f http-echo-ingress.yaml


By following these steps, you will have deployed the http-echo application on your Kubernetes cluster. You can now access it through the Ingress path /echo to see the echoed message.

To secure the http-echo service using oauth2-proxy as an authentication proxy, you need to add specific annotations to the Ingress resource. These annotations will direct traffic through the oauth2-proxy, which in turn will handle authentication with Keycloak before forwarding requests to the http-echo service. Update your http-echo-ingress.yaml file with the following annotations:

   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: http-echo
   annotations:
     nginx.ingress.kubernetes.io/auth-url: "https://<your-oauth2-proxy-host>/oauth2/auth"
     nginx.ingress.kubernetes.io/auth-signin: "https://<your-oauth2-proxy-host>/oauth2/start?rd=$escaped_request_uri"
     nginx.ingress.kubernetes.io/proxy-buffer-size: 512k
   spec:
     tls:
     - hosts:
       - <your-http-echo-host>
       secretName: <your-http-echo-host>-tls
     rules:
     - host: https://<your-http-echo-host>
       http:
         paths:
         - path: /echo
           pathType: Prefix
           backend:
             service:
               name: http-echo
               port:
                 number: 80

To configure the oauth2-proxy to work with Keycloak, you need to edit the values.yaml file used for deploying oauth2-proxy. This configuration will ensure that oauth2-proxy correctly redirects and authenticates users with your Keycloak instance. Below are the necessary configurations:

config:
  provider: "keycloak-oidc"
  clientID: "YOUR_CLIENT_ID"
  clientSecret: "YOUR_CLIENT_SECRET"
  cookieSecret: "YOUR_COOKIE_SECRET"
  emailDomains: "*"
  upstreams: "http://<your-http-echo-internal-dns,something like 'http-echo.namespace.svc.cluster.local:80'>/"
  provider_display_name: "Keycloak"
  redirect_url: "https://<your-oauth2-proxy-host>/oauth2/callback"
  oidc_issuer_url: "https://<your-keycloak-host>//realms/<your-keycloak-realm>"
  insecure_oidc_allow_unverified_email: "true"
  pass_access_token: true
  pass_authorization_header: true
  pass_host_header: true
  pass_user_headers: true

To configure Keycloak for securing your web application, follow these steps:

1. Create a Realm:

   • Log in to the Keycloak Admin Console.
   • In the left-hand menu, click on Add realm.
   • In the Name field, enter http-echo and click Create.

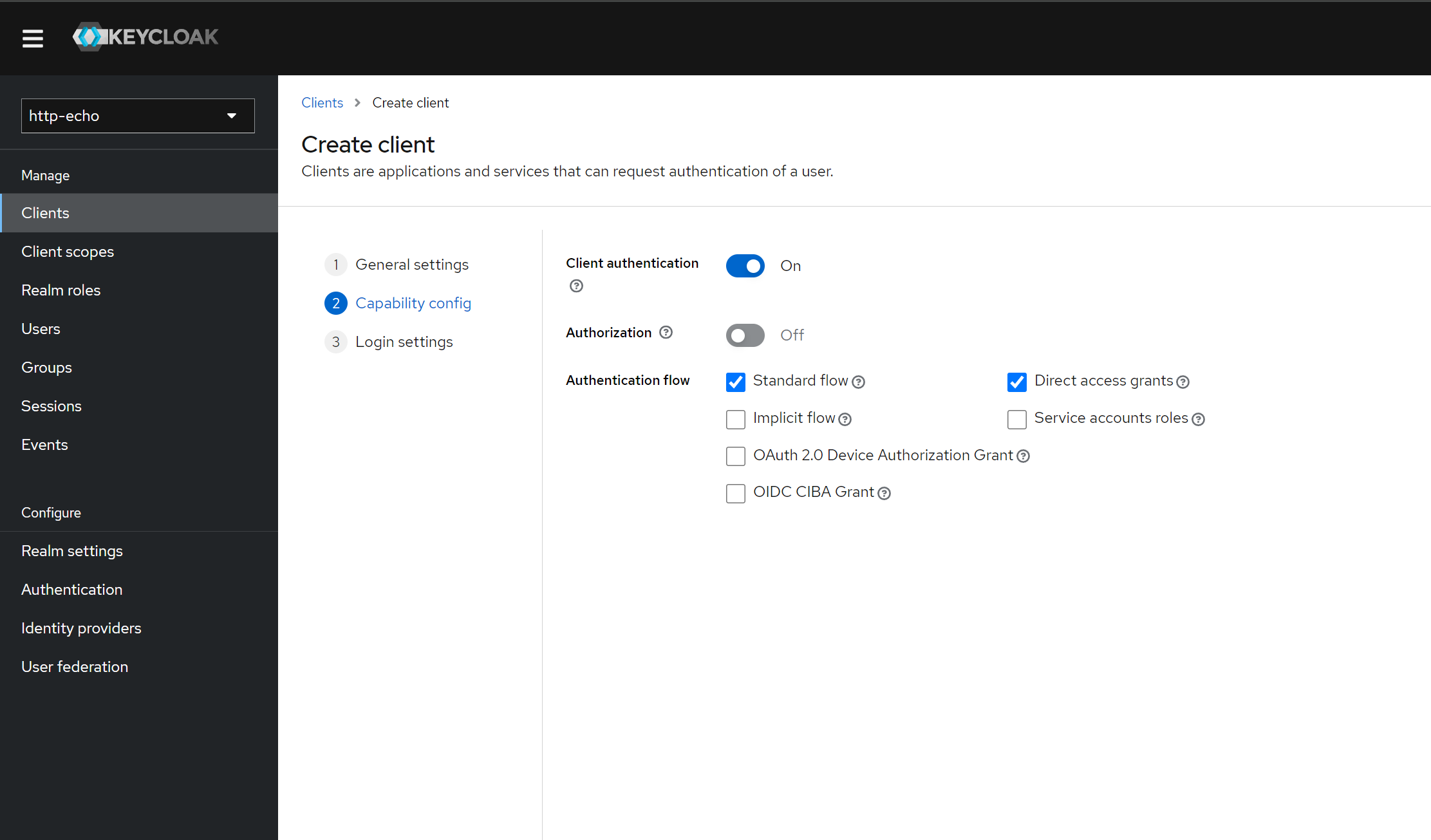

2. Create a Client:

   • Within the http-echo realm, click on Clients in the left-hand menu.
   • Click on Create.
   • In the Client ID field, enter http-echo-web.
   • Set Client Protocol to openid-connect.
   • Click Save.
   • On the Settings tab for the new client, set Client Authentication to ON.
   • Scroll down to the Valid Redirect URIs field and add https://<your-oauth2-proxy-host>/oauth2/callback.
   • Click Save at the bottom of the page.

then do not forget update the configuration of oauth2-proxy with the clientID and clientSecret of the client you just created in Keycloak.

By completing these steps, you have configured Keycloak with a new realm and client suitable for securing your web application through oauth2-proxy.
